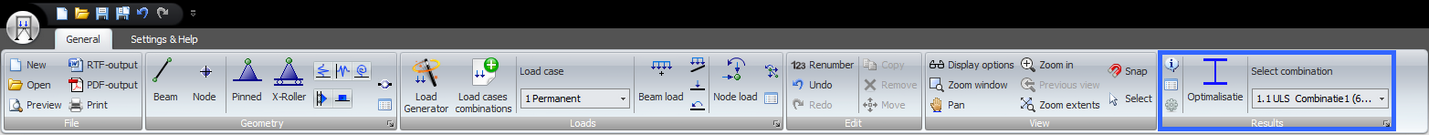

Results

result

Enter the calculate button calculator 32x32 or select the tab Results and your construction is calculated very quick.

Select combination

Here you can select the load combination or the load case which you want to be shown.

In glasses 32x32 display options you can choose what you want to see. See Display options.

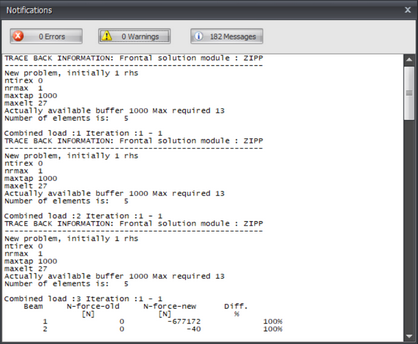

information-balloon Notifications

When the force distribution can not be calculated, for instance when the construction is instable,  a dialog box is opened. This screen can be reopened with the button shown above. In this dialog box the notifications of the calculation module are shown.

notifications

detail Spy

By the use of the spy you can look at the results of a certain beam in more detail.

See Spy.

detail Settings

Calculate settings. See Calculate settings.

optimization1 Optimization

Optimize steel profiles.
