Optimization

With the function optimization you can very easily and quickly create an optimal design of your steel construction. This function can save you a lot of steel kilograms.

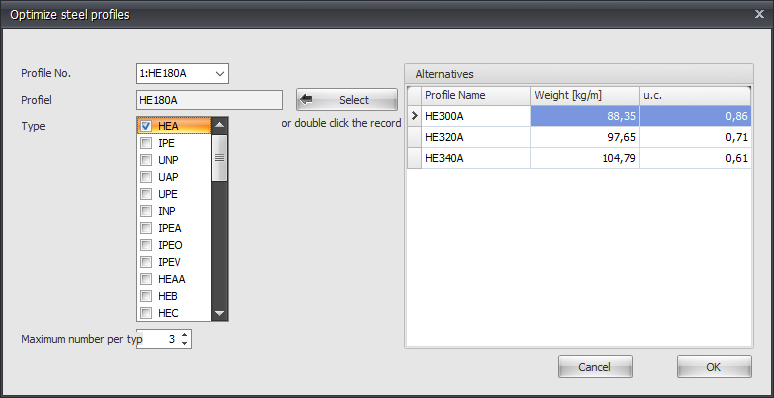

How Does It Work?

You will go through all the profiles (in the table Profiles) as you inserted before. See Beams.

The alternatives per profile will be shown directly. From these alternatives you can select another profile.

Profile No.

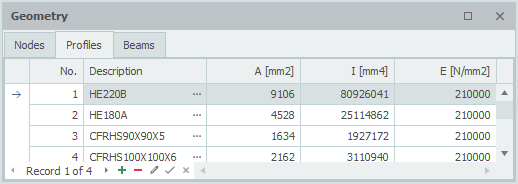

The profile number refers to the profile number in the table Profile shown below.

Profile

The chosen profile.

Type

Here you select the profile type (or group) in which there can be searched for alternative profiles.

Maximum Number per Type

Here you can enter the maximum amount of alternatives per profile type. Standard this value is at 3, but you can vary this value.

Select

Hereby you choose a profile from the right table 'Alternatives'. You can also double-click on the line in the table to choose the profile.

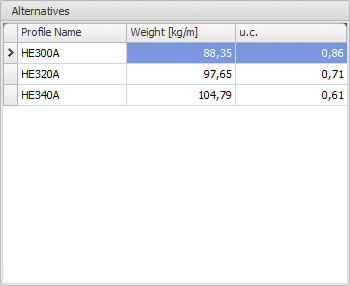

Alternatives

In this table the possible alternatives are directly shown. Normally the table is sorted on the unity check (u.c.). This unity check is the normative check according to the Eurocode EN1993.

It is also possible to sort the table by profile name or weight by clicking on the column text.

Remark: By changing the moment of inertia, the force distribution also changes. The optimization function does not take this into account. It could be possible that the new selected profiles will not be sufficient for your design and you have to use the optimization again. However, you will experience that the optimal design will be determined quickly and easily.
