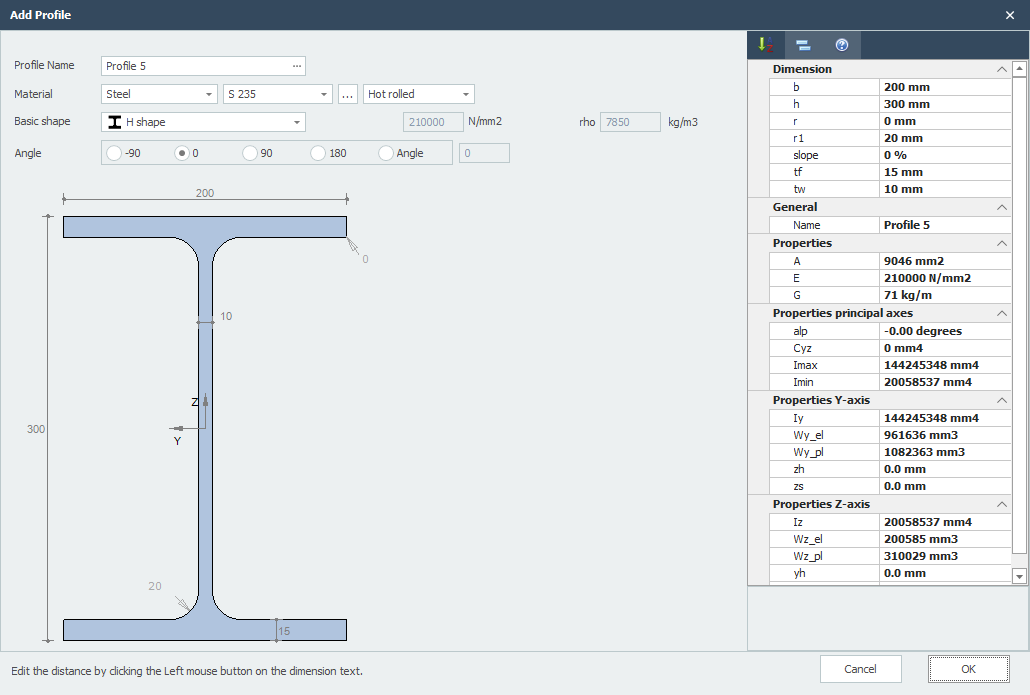

Profile name

Description of profile.

Note: You can enter the standard profile name directly here as well. The program will look up the the standard profile in the database. For example hea200 or HE200a.

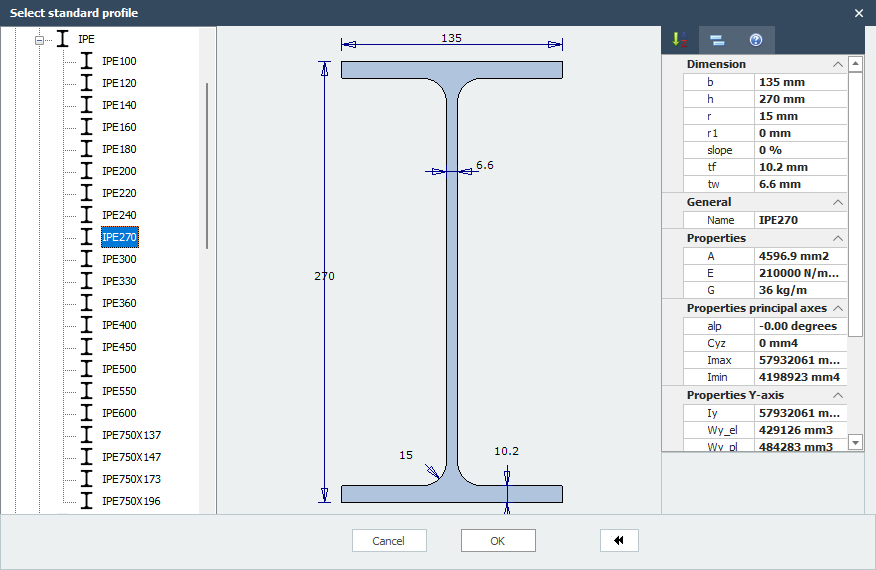

The module has an extensive library of standard profiles of more than 2700 profiles from which you can choose from. Click on the dots ... The dialog below will be visible.

standaard_staalprofiel

Material

Name of material.

Basic shape

There are a number of basic shapes.

shapes

Note. You can change all dimensions by clicking on the number in  dimension line. This way you are able to enter any profile that is not in our database. This will give you flexibility.

See Changing dimensions

E

The elasticity modulus.

Angle

Angle of profile in the y-z coordinate system.
