Nodes

Nodes can easily be added in the graphical screen. To do this, you have to choose in the menu bar. In these modus you can add multiple nodes by means of the left mouse button. By placing the node, you will see the coordinates in the right bottom.

Nodes can be added arbitrary in a fixed raster or at grid lines.

Supports are nodes which can't move in a certain direction.

Changing a node

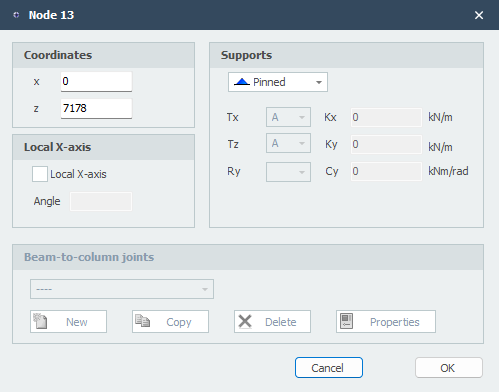

Changing a node is possible by clicking on the node by use of the left mouse button, and subsequently choose for properties by clicking on the right mouse button. There is a more easy way, namely a double click on the node. Consequently the following dialog box will be opened.

Coordinates x

x-coordinate

z

z-coordinate

Limitations see Supports

Local x-axis see Local coordinate system

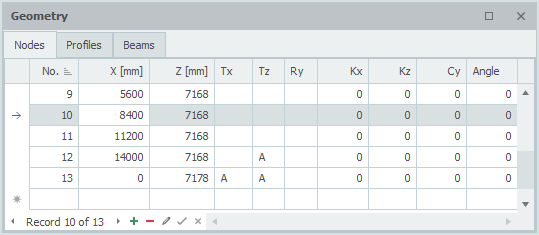

Table Nodes

Nodes can also be added / changed in the table Nodes. It does not matter. It is also possible to change in between graphical input and numerical input via tables.
