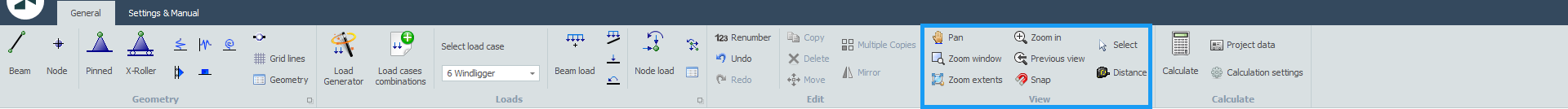

View

Display options

There are many ways to set the graphical view. See Display options.



Zoom window

With this function you can zoom in on a part of your construction. You can use this by making the graphical input easier or to evaluate local results.

Pan

By the use of pan you can drag / move a zoomed part of your drawing. Other parts of the construction will be presented.



Zoom extents

With zoom extents the total construction is shown in full screen.



Previous view

With zoom view you can zoom into a part of the construction in multiple steps. With the function previous view you go back 1 step.

Here you can adapt the snap settings. See Snap settings.
