Spring beam connection

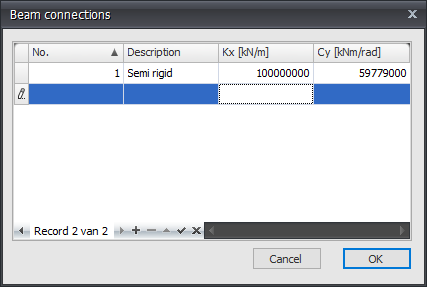

The following dialog box is opened.

Here you can adapt the spring characteristics of a spring connection ( for example a semi-rigid fixed connection)

No.

This is the number of the connection, this number is set automatically. From the beams reference is made to this number. In that way the same connection can be applied multiple times. The spring characteristics are only defined one time. So afterwards adapting the spring characteristics is very easy.

Description

Free text space

Kx

Stiffness in kN/m

Cy

Momentum stiffness in kNm/rad
