Timber
Hout

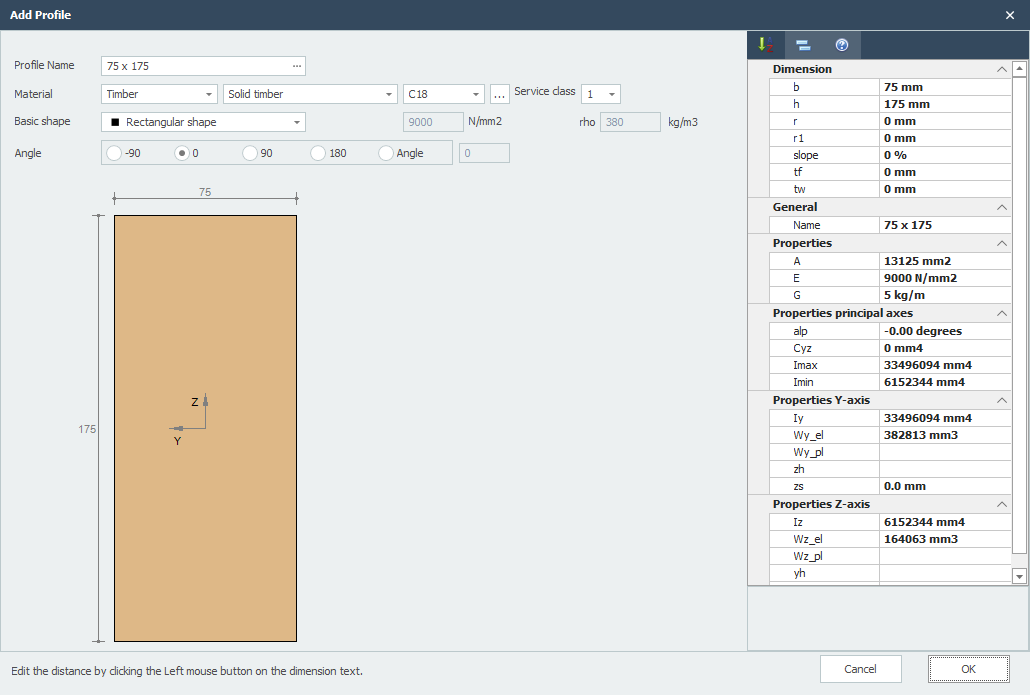

Profile name
Description of profile.
Note: You can enter the standard profile name directly here as well. The program will look up the the standard profile in the database. For example 85 x 175.

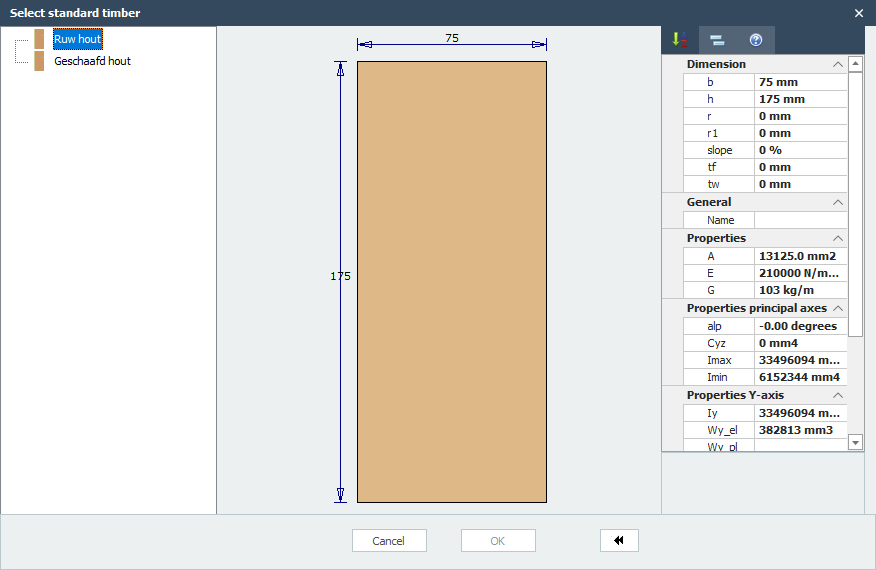

The module has an extensive library of standard profiles from which you can choose from. Click on the dots ... The dialog below will be visible.
Material
Name of material..
Type of timber
Timber class
C14, C16, C18, C20, enz.
Service class
1, 2, of 3.
Basic shape
There are a number of basic shapes.
Note. You can change all dimensions by clicking on the number in dimension line. This way you are able to enter any profile that is not in our database. This will give you flexibility.
E
The elasticity modulus.
Angle
Angle of profile in the y-z coordinate system.
