Spring Connections

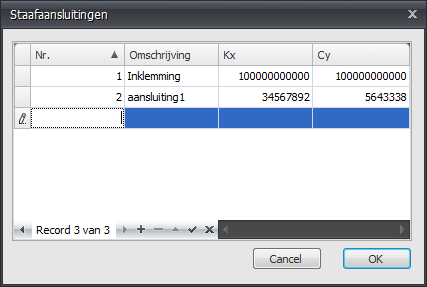

The following dialog window opens.

Here you can enter the spring characteristics of the spring connection (for example a semi-rigid moment connection).

Parameters

Nr. The number of the connection. This number is automatically created. From the members, reference is made to this number. In this way, the same connection can be applied multiple times. The spring characteristics are defined once. Adjusting the spring values afterwards is therefore very easy.

Description Free text input.

Kx The axial spring value in N/mm

Cy The moment spring value in Nm/rad
